Machine Vices

Milling Machine Vices (Standard)

* Made Of Graded Cast Iron For Accuracy & Resistance To Wear
* Steel Jaws Are Hardened & Ground
* Fully Covered Steel Screw Operating On A Gun Metal Nut
* Accurately Indexed 360 º Swivel Base
* Complete With Crank Handle

CAT. NO. NOMINAL SIZE JAW WIDTH JAW DEPTH MAX. OPENING

INCHES mm INCHES mm INCHES mm INCHES mm

231-S4 4 100 4 102 1³/₁₆ 45 4 102

231-S5 5 125 5 127 2¹/₈ 54 5 127

231-S6 6 150 6 152 2³/₈ 60 6¹/₈ 155

231-S8 8 200 8 205 2¹/₂ 63 8 205

Quantity

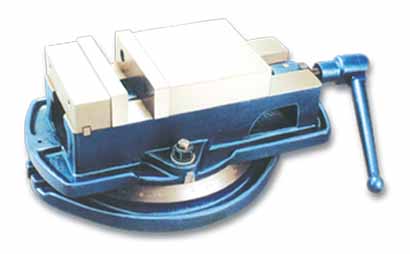

Milling Machine Vices (Kurt Type)

* Made From Close Grain Cast Iron
* Alloy Steel Jaws Are Hardened And Ground
* Jaw Way Is Precision Ground For Smooth Movement & Greater Gripping Power
* Accurately Graduated Swivel Base

CAT. NO. NOMINAL SIZE JAW WIDTH MAX. OPENING

INCHES mm INCHES mm INCHES mm

131-S5 5 125 5 127 4¹/₄ 108

131-S6 6 150 6 152 5¹/₂ 140

Quantity

Milling Machine Vices (Economy)

* Light Weight Ductile Steel Body
* Alloy Steel Jaws Are Hardened & Ground
* All Working Surfaces Precision Ground With Accurately Graduated Swivel Base

CAT. NO. NOMINAL SIZE JAW WIDTH JAW DEPTH MAX. OPENING

mm mm mm mm

31-S4 100 100 30 65

31-S6 150 150 40 114

31-S8 200 200 58 150

Quantity

Angular Machine Vices

* Made From Close Grain Cast Iron
* Alloy Steel Hardened Jaw Plates
* The Swivel Base Is Graduated In 360 º In The Horizontal Plane & 90 º In The Vertical Plane Enabling The Work To Be Held In Any Compound Angle
* No Tilting Of Jaws

CAT. NO. NOMINAL SIZE JAW WIDTH JAW DEPTH MAX. OPENING

INCHES mm INCHES mm INCHES mm INCHES mm

301-A4 4 100 4 102 1³/₄ 45 4 102

301-A6 6 150 6 152 2¹/₄ 56 6¹/₈ 155

301-A8 8 200 8 205 2¹/₂ 63 7⁷/₈ 200

Quantity
